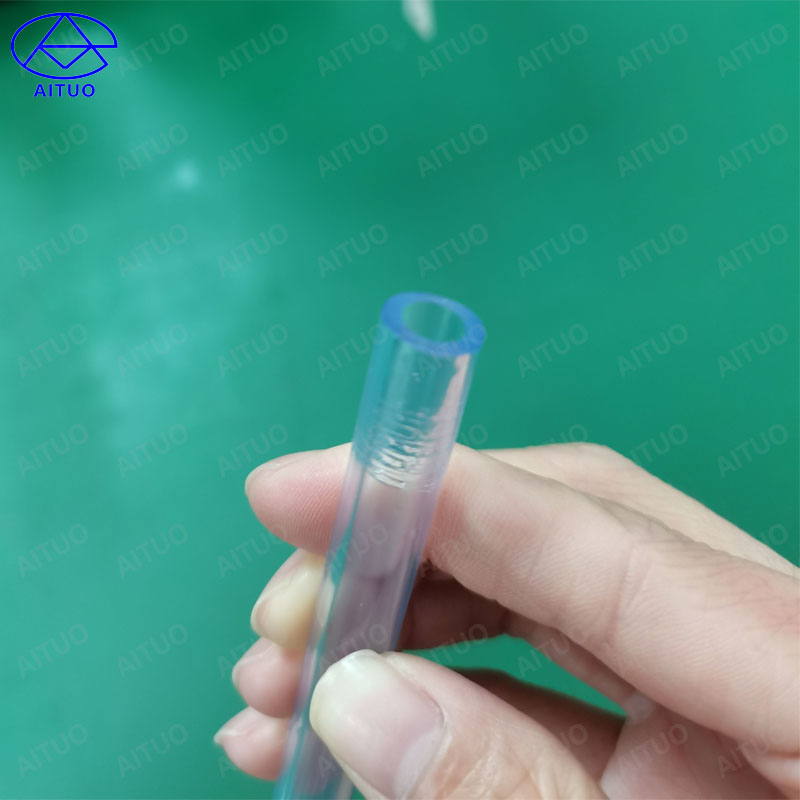

Rotary gluing machine is an independent research and development dedicated to high viscosity easy curing glue gluing equipment. Way of equipment using rotary glue, glue coating head into the catheter in equipment since the start of the lining surface, reach the location after rotating the glue, can control the rotating ring spacing, controllable make glue, can control the length of glue, and other functions, glue length reach the set value namely, after the completion of coating equipment automatically returned to the starting point for the next glue. The equipment is easy to operate and convenient to use. The operation interface is either in Chinese or English, which is convenient for foreign personnel to operate.

Three, components:

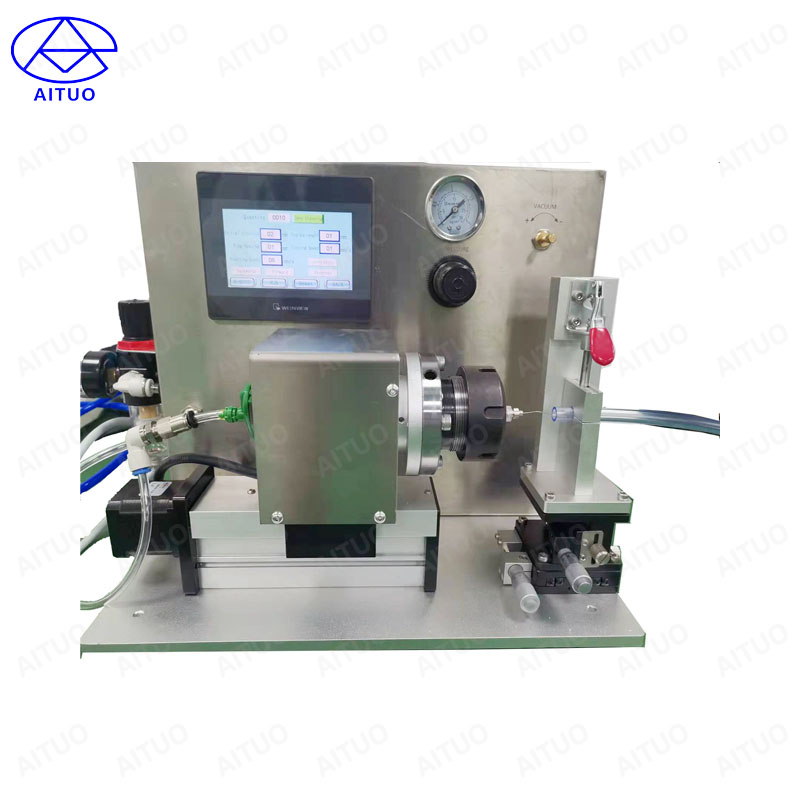

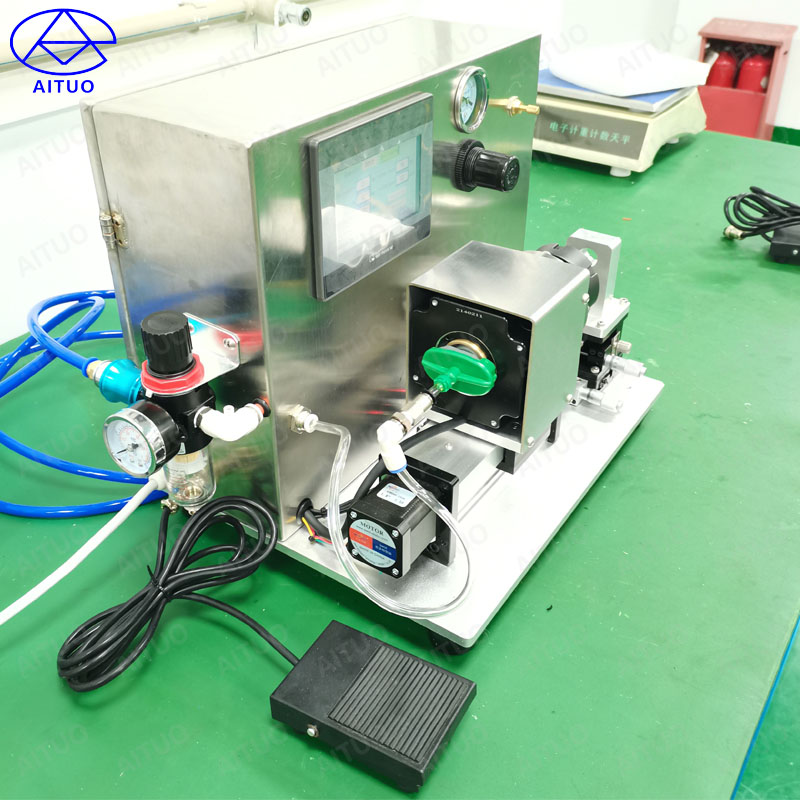

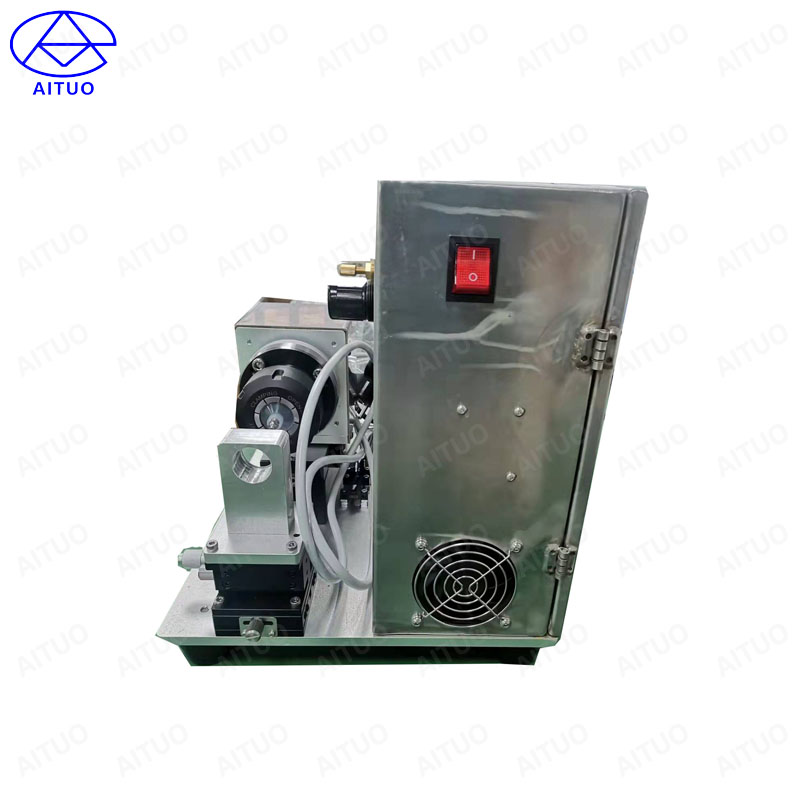

The equipment is composed of chassis, PLC control module, touch screen interface, dispensing module, movement module, fixture module and so on.

Rated voltage 220V

Power 100 w

The input pressure is 0.5mpa

Maximum glue length 15mm (adjustable) glue storage 50ml

The amount of glue can be adjusted

5 inch Verlon touch screen controller Siemens PLC

Device dimensions Length * Width * Height =420*280*320mm
