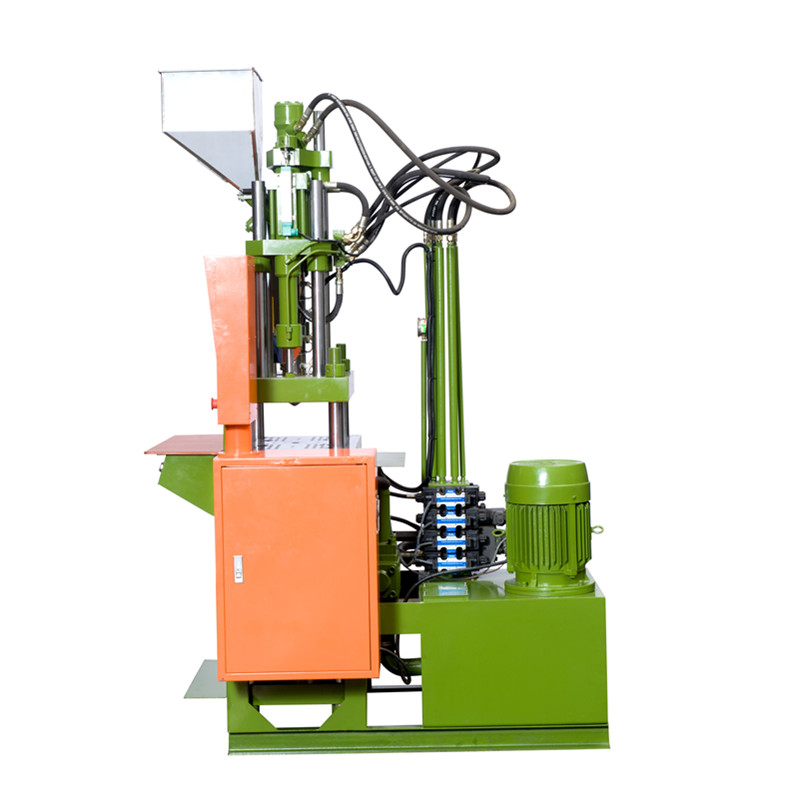

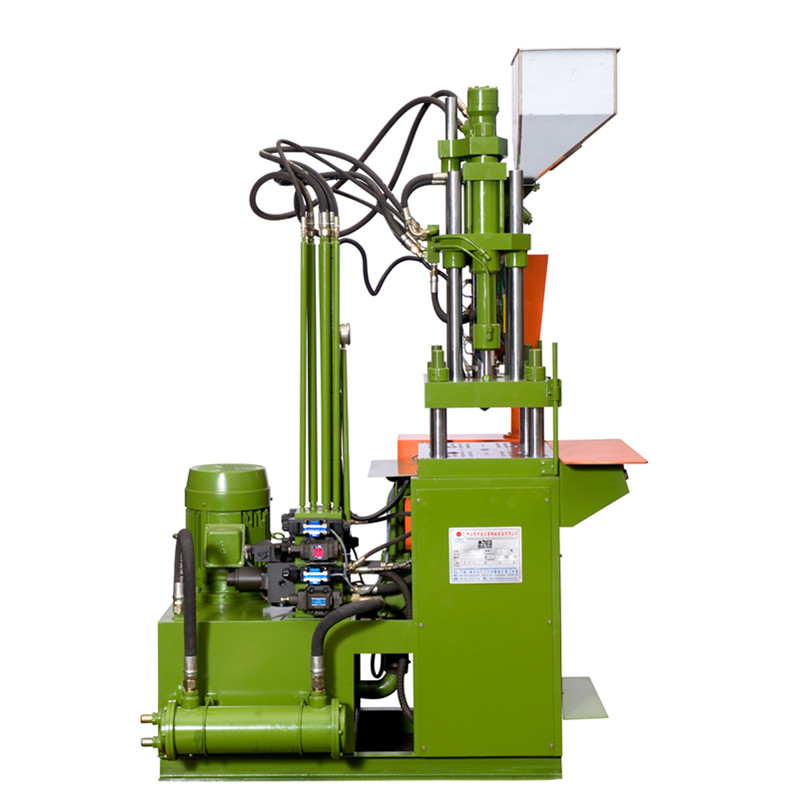

AM701-3.5T Plastic Vertical Injection Moulding Machine

  • Model:AM701-3.5T
  • Brand: Aituo
  • Delivery:10~15 dyas
  • Warranty:2 year

INQUIRY NOW

×Enter your message





    Product Description

    Features:



    1.Vertical clamping / injection, suits for injection of common plugs and Small electronic parts.

    2.Two or three-sections temperature control, adjustable injection speed and screw speed, is suitable for various kinds of precision engineering plastic part shaping.

    3.High speed with low pressure clamping, the clamping will open when there is exceptional condition.

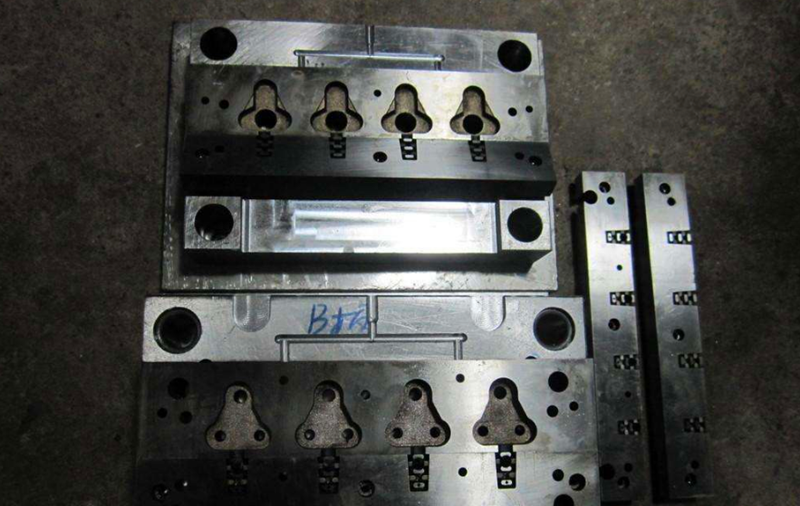

    4.Fixed Lower mould and movable upper die. Strong polarization for the insert items, the ejection device is included.

    5.Adopts imported fittings, low noise, high efficiency, high life-span, unique design, safe easy to operate and maintenance.

    6.Can add single sliding or double sliding to improve the production and safety.



    Specification:



    Model AM701-3.5T
    Screw diameter ¢32 mm
    Injection capacity 96cm²
    Injection weight 110g
    Max.shot Weight 58cc/s
    Screw stroke 0-200mm
    Screw speed rotation 0-150r.p.m.
    Nozzle contact force 2.4tf
    Clamping force 35tons



    Clamping stroke 215mm
    Max mold space 360mm
    Min.thickness of mold 145mm
    Hydraulic ejector force 0.7tf
    injector stroke 28mm
    Injection pressure 1367kg/cm²
    Oil tank capacity 160L
    Drive motor 7.5kw
    Dimensions 1400x1100x3200mm
    weight 1.1t
