AM20403 Precision tip forming machine

Equipment Introduction

Purpose and characteristics

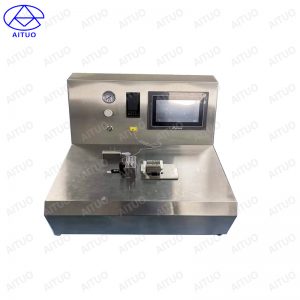

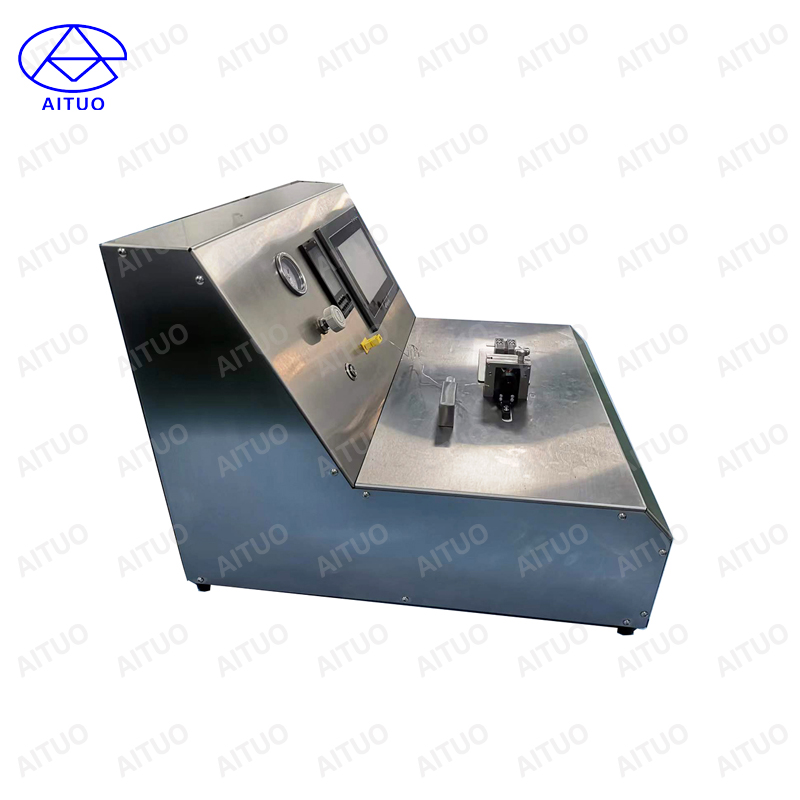

This equipment is mainly used for post-processing of medical plastic catheter ends. It adopts manual feeding and consists of three stations: clamping components, mold clamp fixing components, coil heating components, etc. The equipment has a compact structure, composite material welding, butt joint, pipe end rounding, sealing and tip forming. The mold is heated by electromagnetic induction, the pipe is clamped with a finger cylinder and a motor is used to push the pipe into the mold to shape the end of the pipe. The user can input parameters through the touch screen to adjust the process.

Structure and main parameters

• The structure mainly includes:The mechanical part is composed of the frame, the clamping jaw cylinder, the sliding table cylinder, the heating coil, the air source, and the precise adjustment of the air pressure. The electrical part is composed of PLC integrated machine, stepping motor, switching power supply, heating module, thermometer and so on.
• Equipment parameters

Equipment size：500mm（L）×520mm（W）×370mm（H）

Weight：20KG

Working voltage: single-phase220V，10A，50HZ

Air pressure：0.5~0.8Mpa

Power：0.3KW

Ambient temperature：-20℃＋50℃

Operator: 1 person

Forming speed：300-600PCS/h
