Catheter tip forming machine for medical equipment best seller

Product Description

Catheter tip forming machine

Equipment introduction

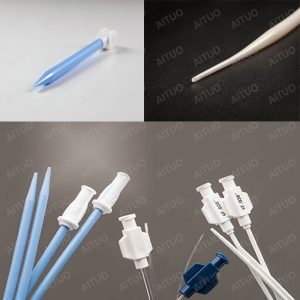

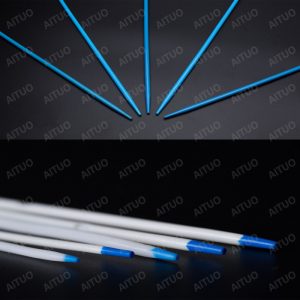

Application:Central venous catheter tip forming, dialysis catheter tip forming, catheter sheath tip forming,dilation catheter tip forming, PICC catheter tip forming, drainage catheter tip forming, tracheal intubation tip forming, urinary catheter tip forming machine, indwelling needle, etc.

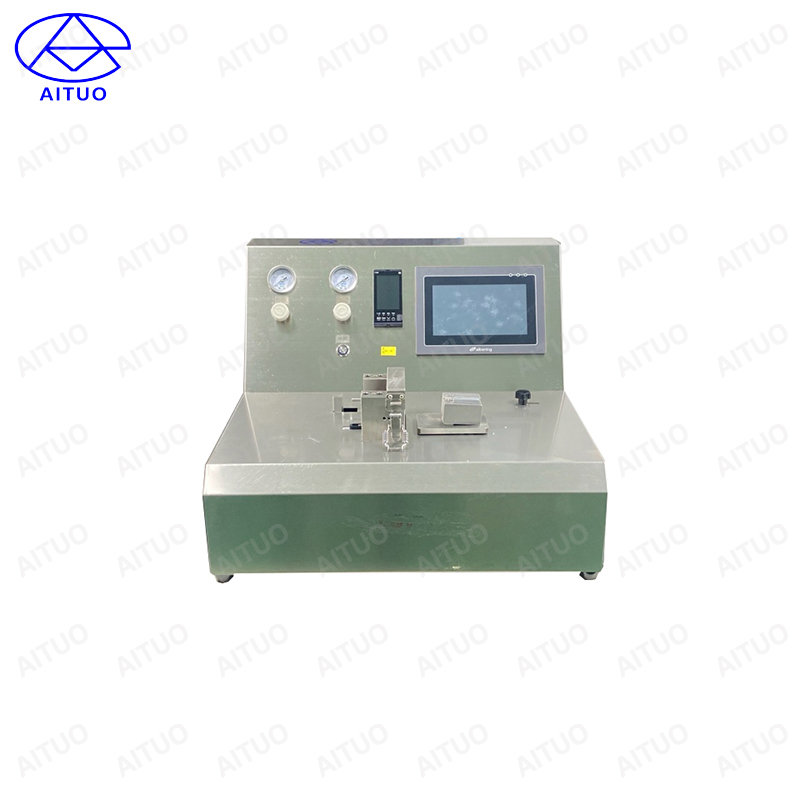

The temperature-controlled hot-melt tip forming machine of Aituo Automation is dedicated to the post-processing the end of medical plastic catheters.It is also called medical tube end forming equipment ,Radio frequency tip forming machine (RFT) and 4-up catheter tip forming machine. Its main feature is the integrated design of the mainframe, which minimizes the size of the equipment. This catheter tip forming machine have the temperature feedback control function,Which adopts Japanese RKC thermostat with temperature fluctuation range of ±1℃. The real-time heating temperature and curve can be monitored on the touch screen. Easy to set the temperature and adjustment ,which not only can reduce the human error, but also improve the production capacity of standard products as well as the working environment of employees.

Except catheter tip forming, the catheter production area also has printing, drilling, skiving machinery ,which will allow you from idea to finished produt.

Central venous catheter tip forming, dialysis catheter tip forming, catheter sheath tip forming,dilation catheter tip forming, PICC catheter tip forming, drainage catheter tip forming, tracheal intubation tip forming, urinary catheter tip forming machine, indwelling needle, etc.

Technical parameters

The Fixture clamping :2-20N
Jig advancement: 2-15N
Diameter range: 1.0-10.0mm
Tip length: 0.5-25mm
Temperature range: 50-500 ℃
Applicable materials: PVC,PU,HDPE,LDPE,PP,PA,PEBAX,FEP, etc.
Application products: Central venous catheter, dialysis catheter, catheter sheath,dilation catheter, PICC catheter, drainage catheter, tracheal intubation, urinary catheter, indwelling needle, etc.

Advantage: Aituo Automation who is an expert in innovation, with superior design , research and development, manufacture, storage and dispatch. We can assure that high quality disposable ,surgical and medical devices.We also can provide to customers with cost efficient, innovative and effective machine.
