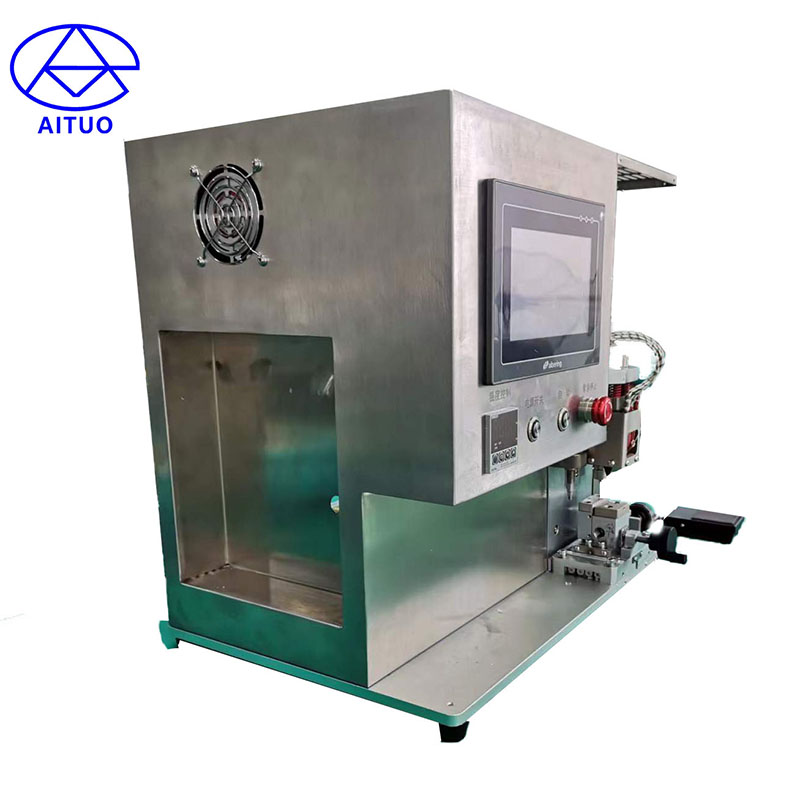

Equipment Introduction

This equipment is specially used for medical plastic pipe punching machine, which can punch U-shaped hole, diamond hole and other special-shaped holes. After heating the punching tool to a certain temperature, the machine can punch the corresponding pipe. The advantages of the machine are CAM drive, accurate positioning, durable, convenient adjustment of each direction axis, and fast alignment of the knife.

Equipment Parameters

Working voltage: 220V, 10A, 50HZAir pressure: 0.4-0.8mpaPower: 0.32 KWAmbient temperature:-20℃+50℃Operator: 1 personWeight: 50 KGSize: 500x478x340 mm(Lx Wx H)

Technical parameters

Action stroke :40 mmCompressible stroke :8 mmZ axis adjustable range :0-8 mmX axis adjustable range :±5 mmY-axis adjustable range :±5 mmApplicable pipe diameter :4-20 mmMotor speed range :0-56 RPMTool heating temperature :0-300 ℃
